Lighting Foundation

Home / Power Line Hardware / Grounding Anchor / Lighting Foundation Anchor / Lighting Foundation

Catalog ID: 03D8N3W

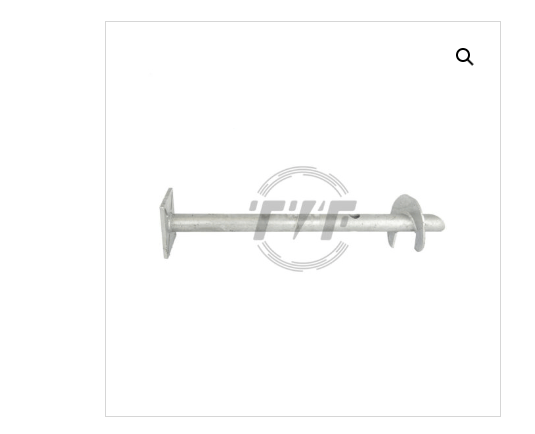

Lighting Foundation Anchor is a type of Grounding Anchor used to connect a stay wire by a guy clamp, and the other end is fixed to types of earth anchors buried under the ground.

It is widely used in overhead power line constructions. All sizes are available in our TTF Power system.

Contact Us

Categories: Grounding Anchor, Lighting Foundation Anchor, Power Line Hardware

Product Details | Resources and Downloads

Product Details | Resources and Downloads

Product Details

General

ApplicationHelical AnchoringBase Plate ShapeSquareBolt Hole TypeSlottedCoatingGalvanized, ASTM A-153Hardware PackagingTaped to ShaftNumber of Bolt Slots4Pipe TypeRound PipeTypeLighting Foundation AnchorsWith HardwareIncluded

展开全文

Dimensions

Base Plate Dimensions7.00 in (177.8 mm)Base Plate Thickness0.500 in (12.7 mm)Bolt Length2.25 in (57.15 mm)Cableway Distance From Base24 in (609.6 mm)Cableway Length1.50 in (38.1 mm)Cableway Width1.50 in (38.1 mm)Center hole dimensions1.50 in (38.1 mm)Diameter – Bolt0.5 in (12.7 mm)Diameter – Bolt Circle4 in (101.6 mm)

8 in (203.2 mm)Foundation Diameter2.000 in (50.8 mm)Foundation Length36 in (914.4 mm)Length36.00 in (914.4 mm)Length – Base Plate to Top of Conduit Hole24 in (609.6 mm)Weight27.000 lb(12.25 kg)

Logistics

Pallet Quantity30Standard Package1

Resources and Downloads

SpecificationsDownload PDFTechnical DrawingsDownload PDF
